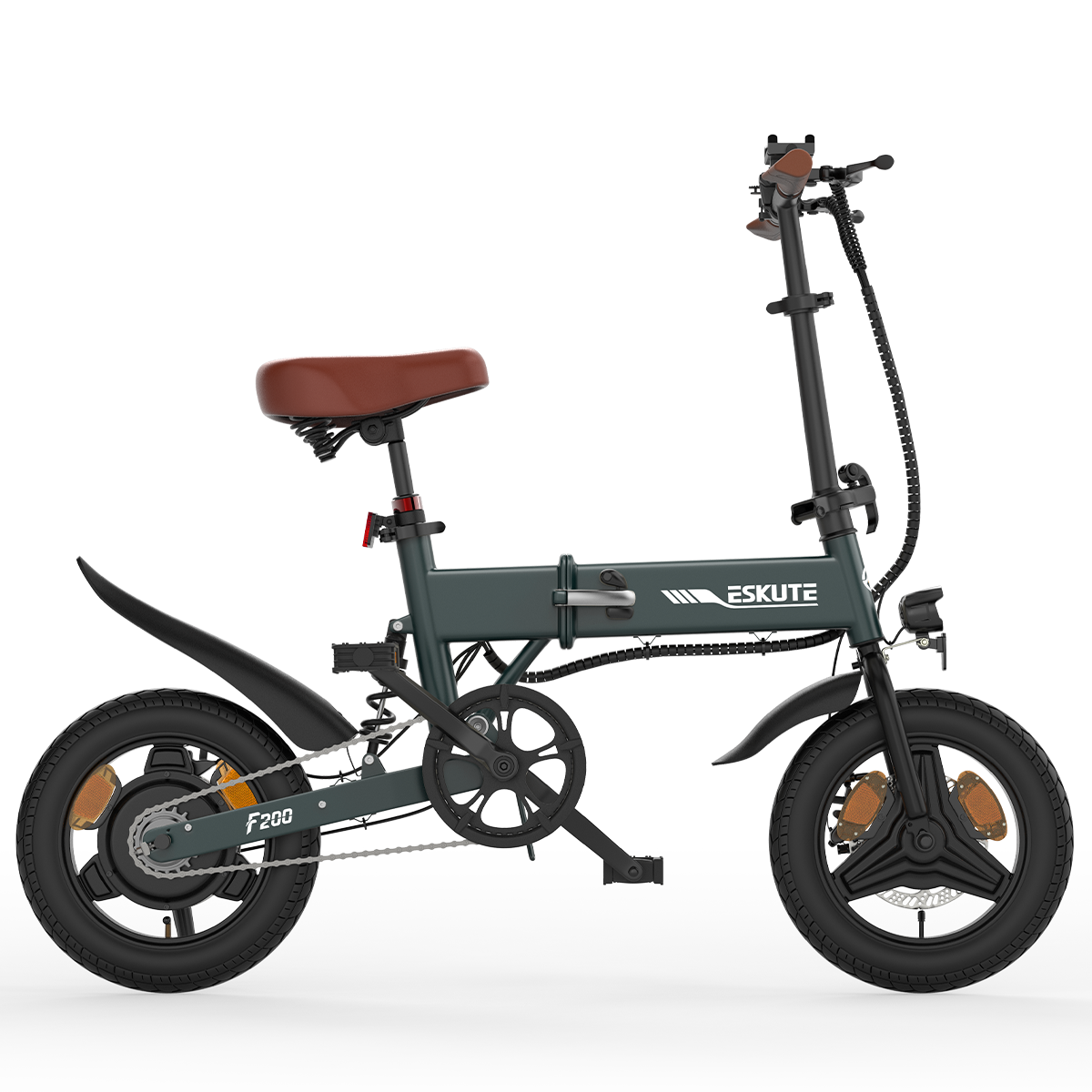

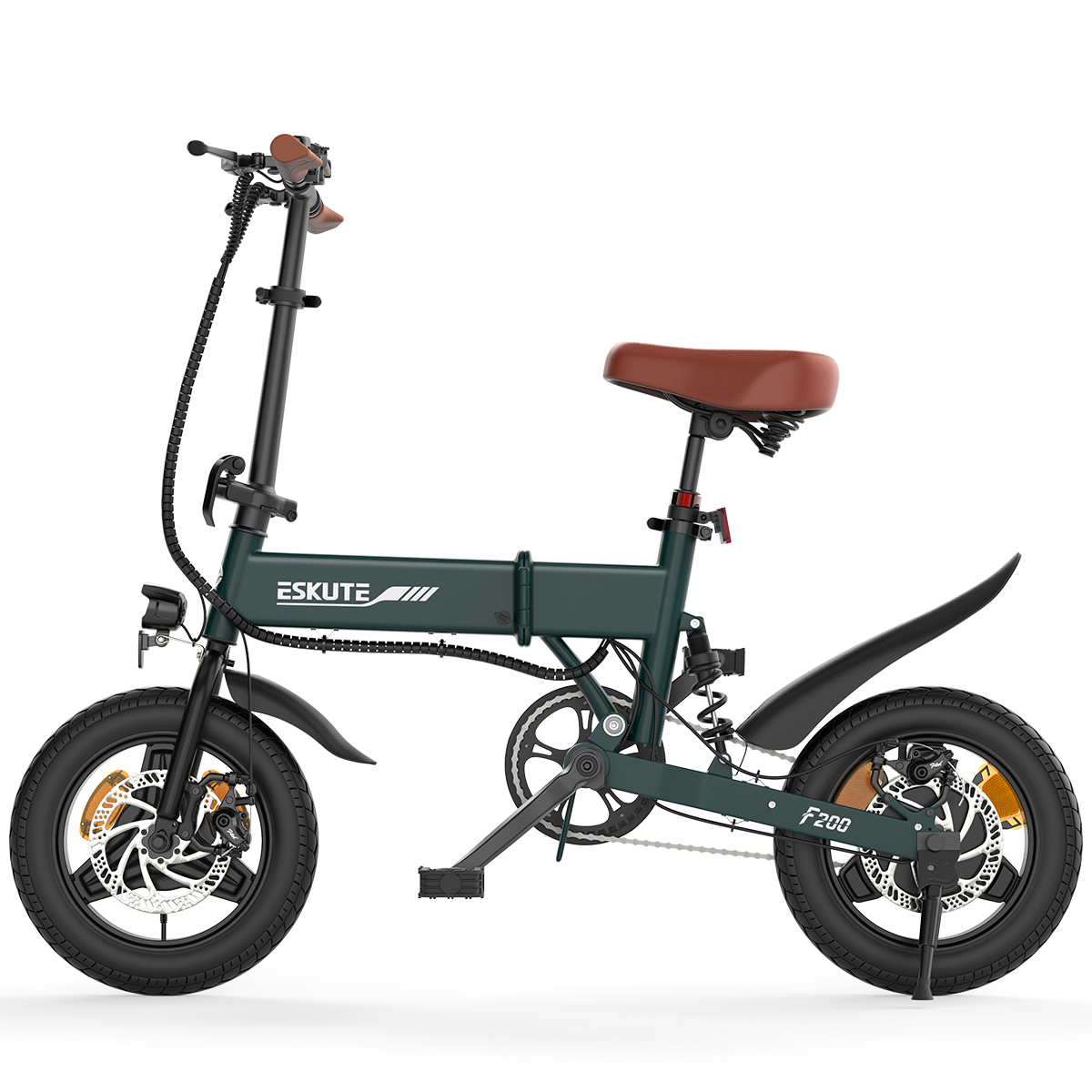

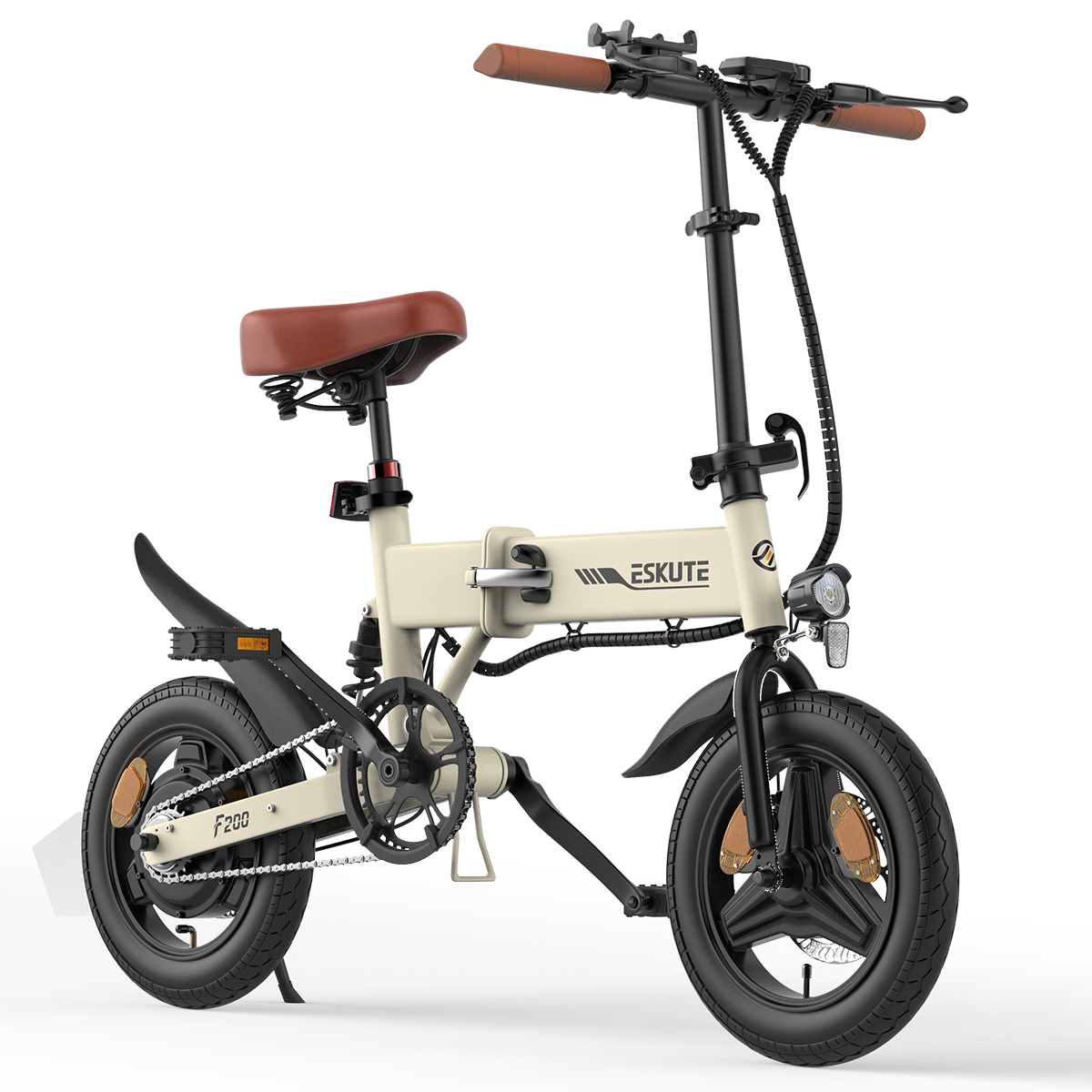

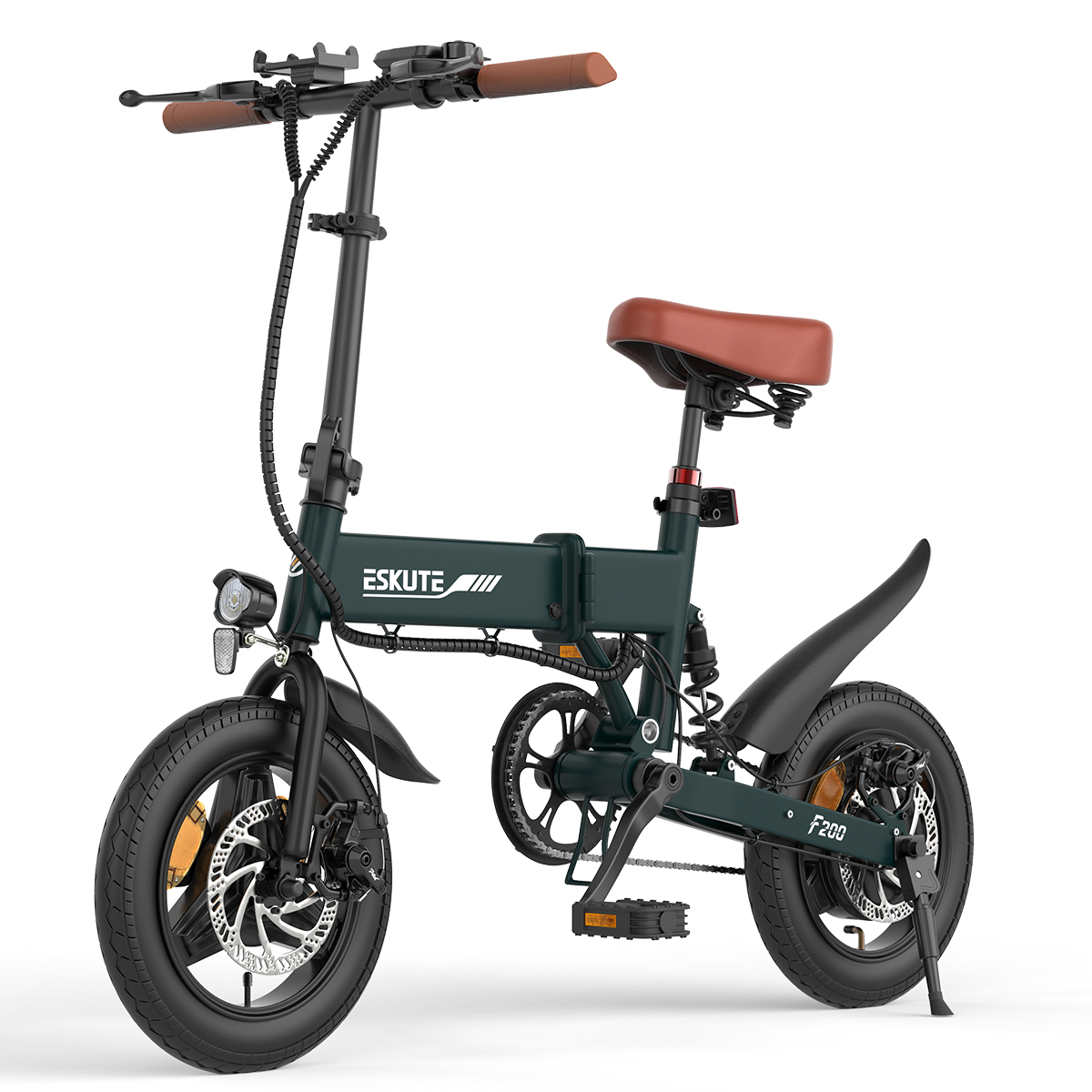

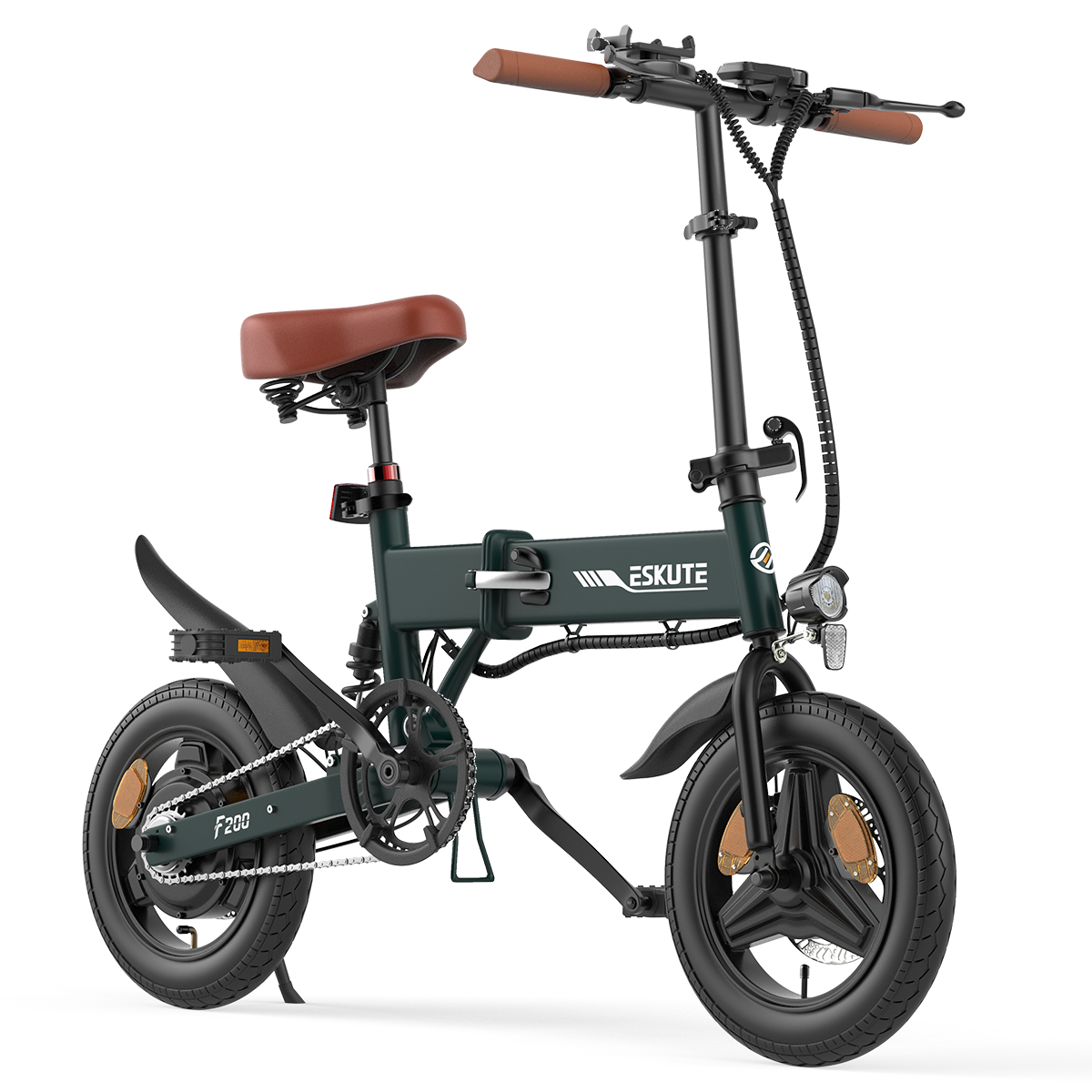

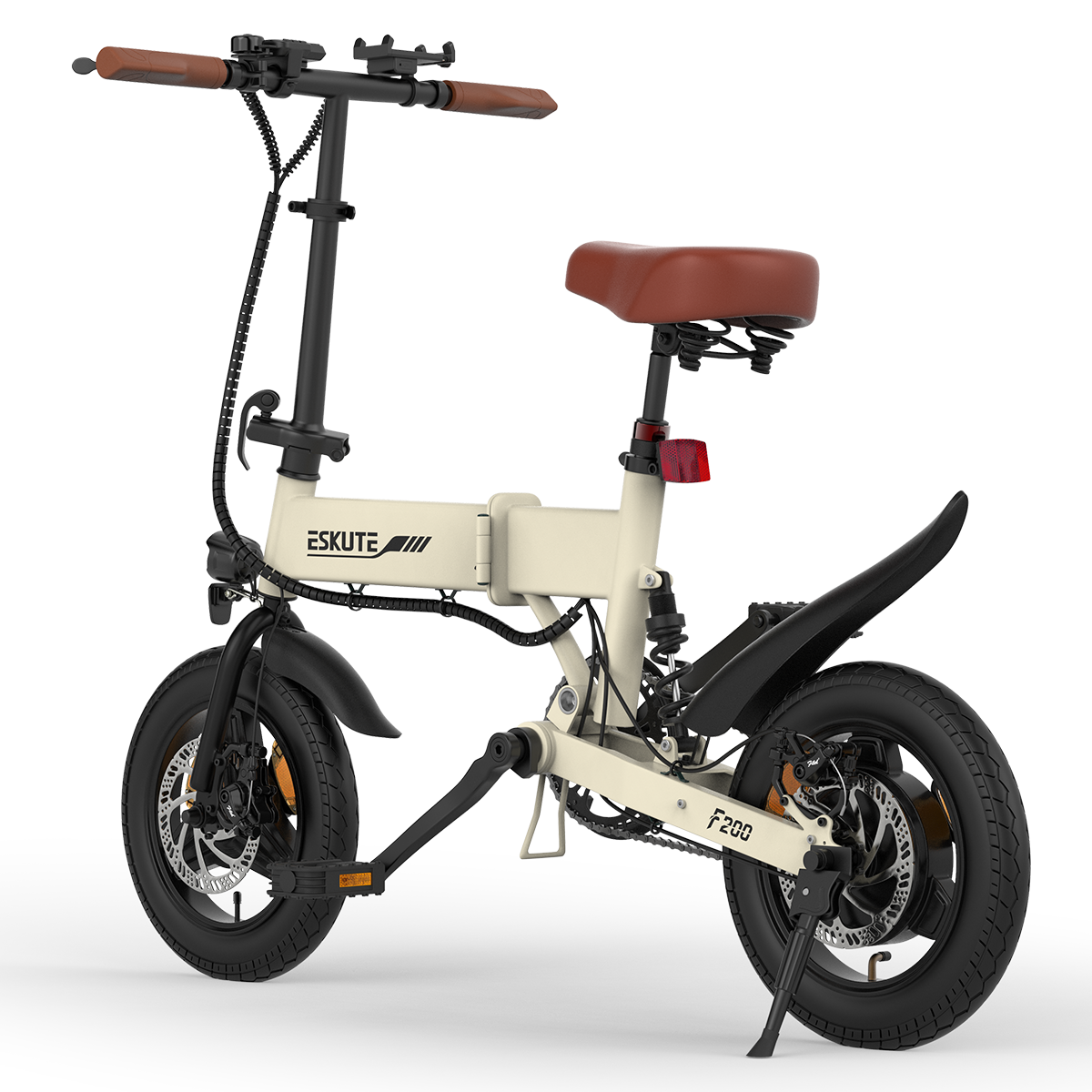

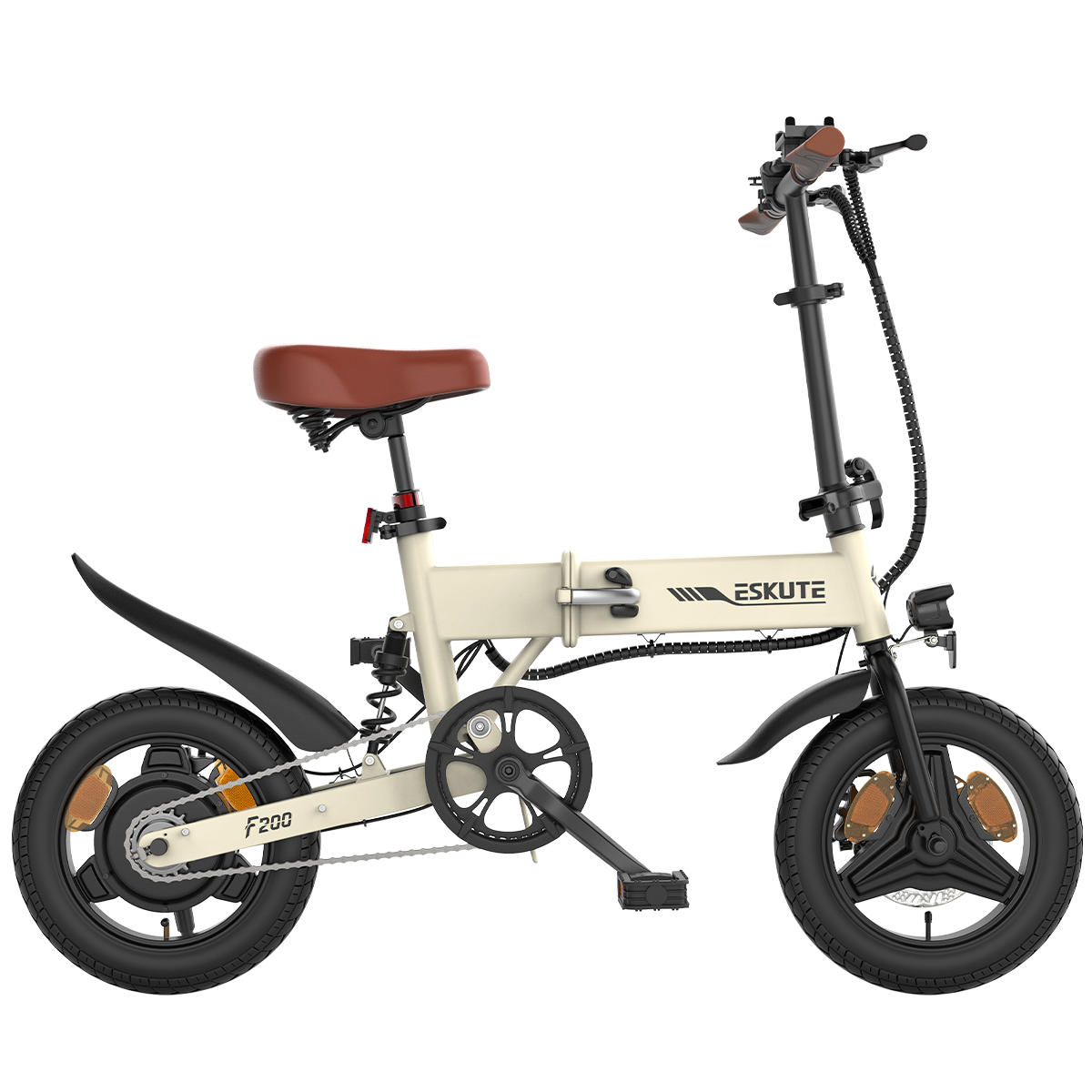

F200 Mini Folding Electric Bike
F200 Mini Folding Electric Bike
In-depth information

Featuring a mighty 250W high performance motor and a 25 Nm torque, delivers smooth, silent power—reaching speeds up to 25 km/h and conquering slopes of up to 15° with ease. Perfect for urban commutes and weekend adventures alike.

Long-Range Battery, Built to LastThe 36V 7.8Ah battery delivers up to 50 km per charge and is seamlessly integrated into the frame with waterproof and shock-resistant protection.

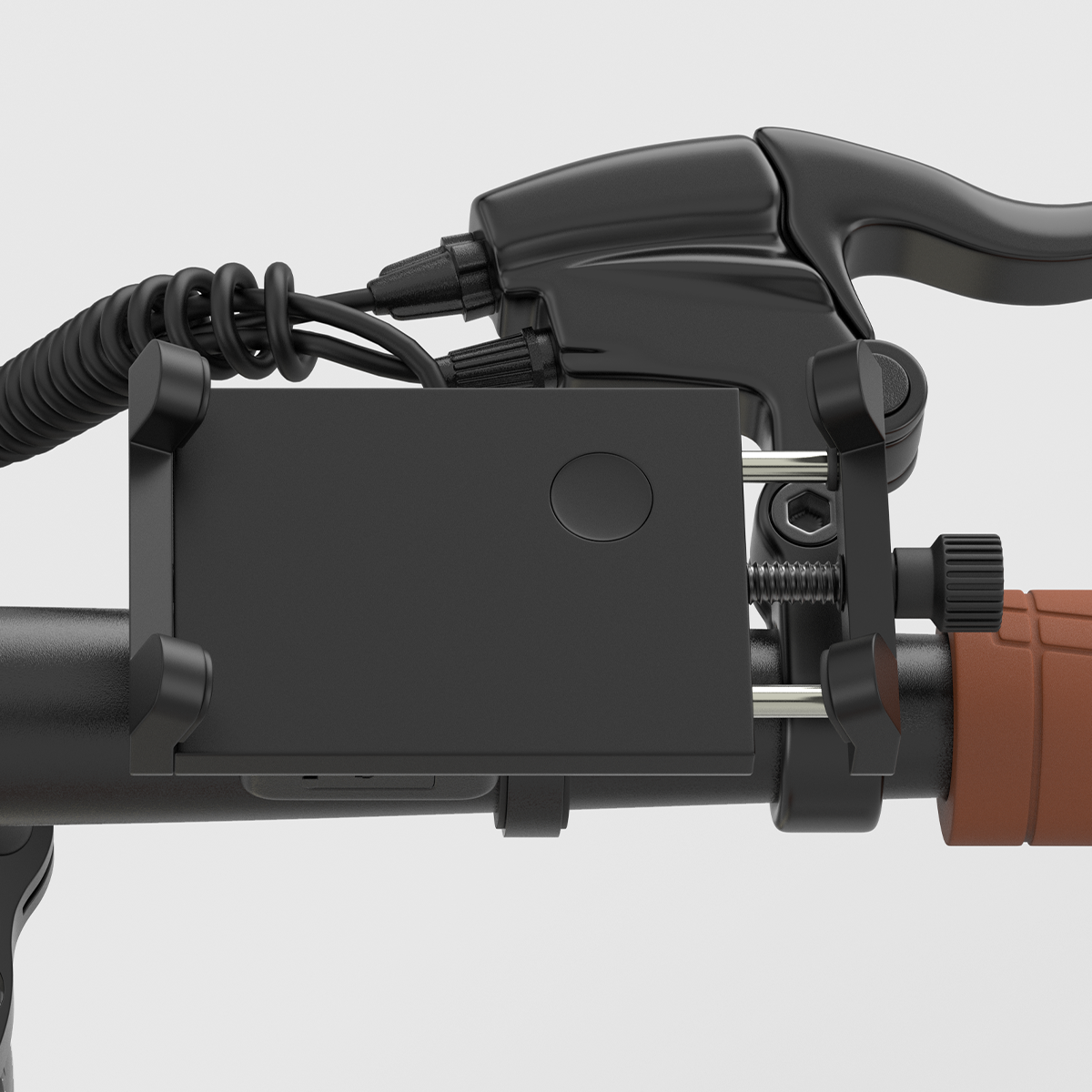

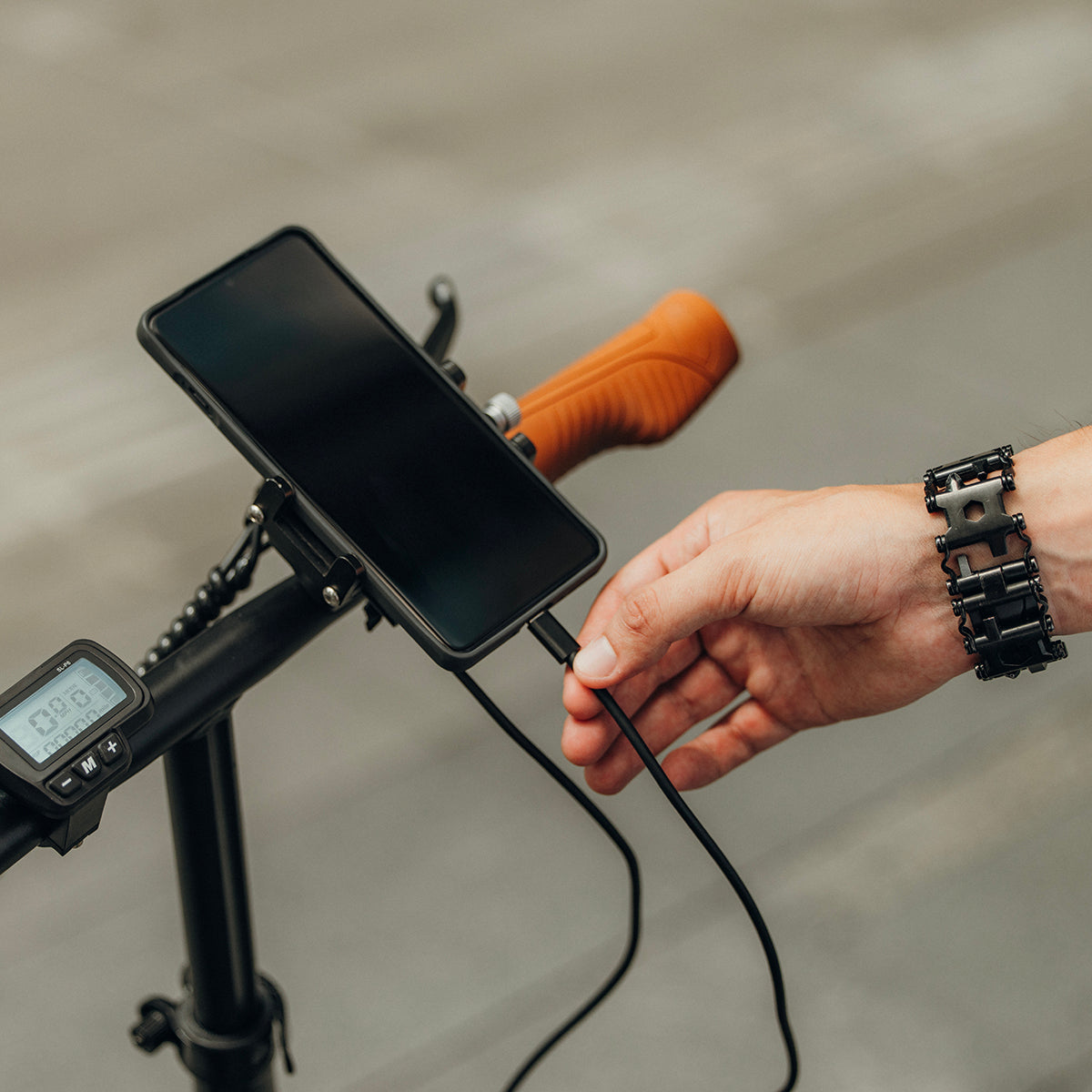

Safe on the road. The integrated holder secures your mobile phone while the USB port charges it during the ride.

Two shock-absorbing springs ensure greater ride comfort.


Where Comfort Meets Convenience

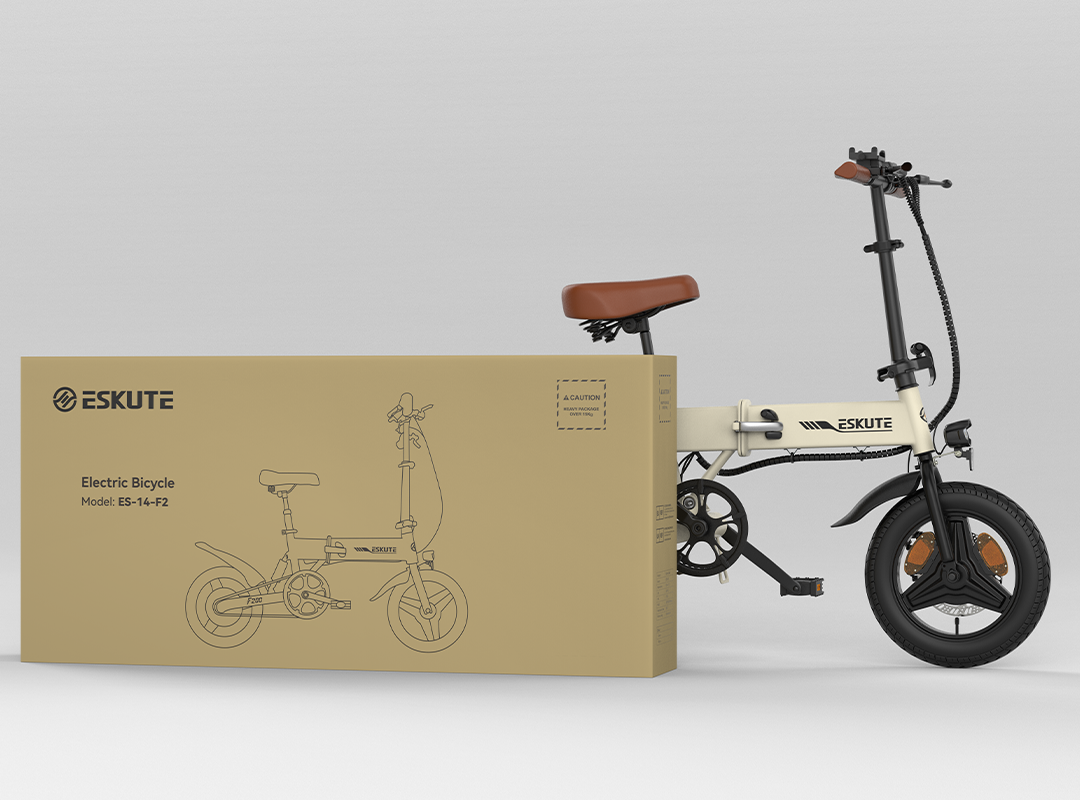

What's in your box?
· ESKUTE F200 E-bike
· Tools Kit
· Charger
· Warranty Card


Top Speed | 15.5mph(*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power.) |
Range |
Up to 30 miles on Pedal Assist
|
Weight Capacity | 120 KG |
Recommended Rider Heights | 4'11" – 6'1" |
Motor |
|
Battery | Removable Internal Lithium-ion 36V, 7.8Ah (281Wh) |
Charger | 42V/1.5A 5.5mm*2.1mmmp, 6-7 Hour Charging |
Sensor | Speed Sensor |
Throttle | No Throttle included |
Pedal Assist | 3 Levels |

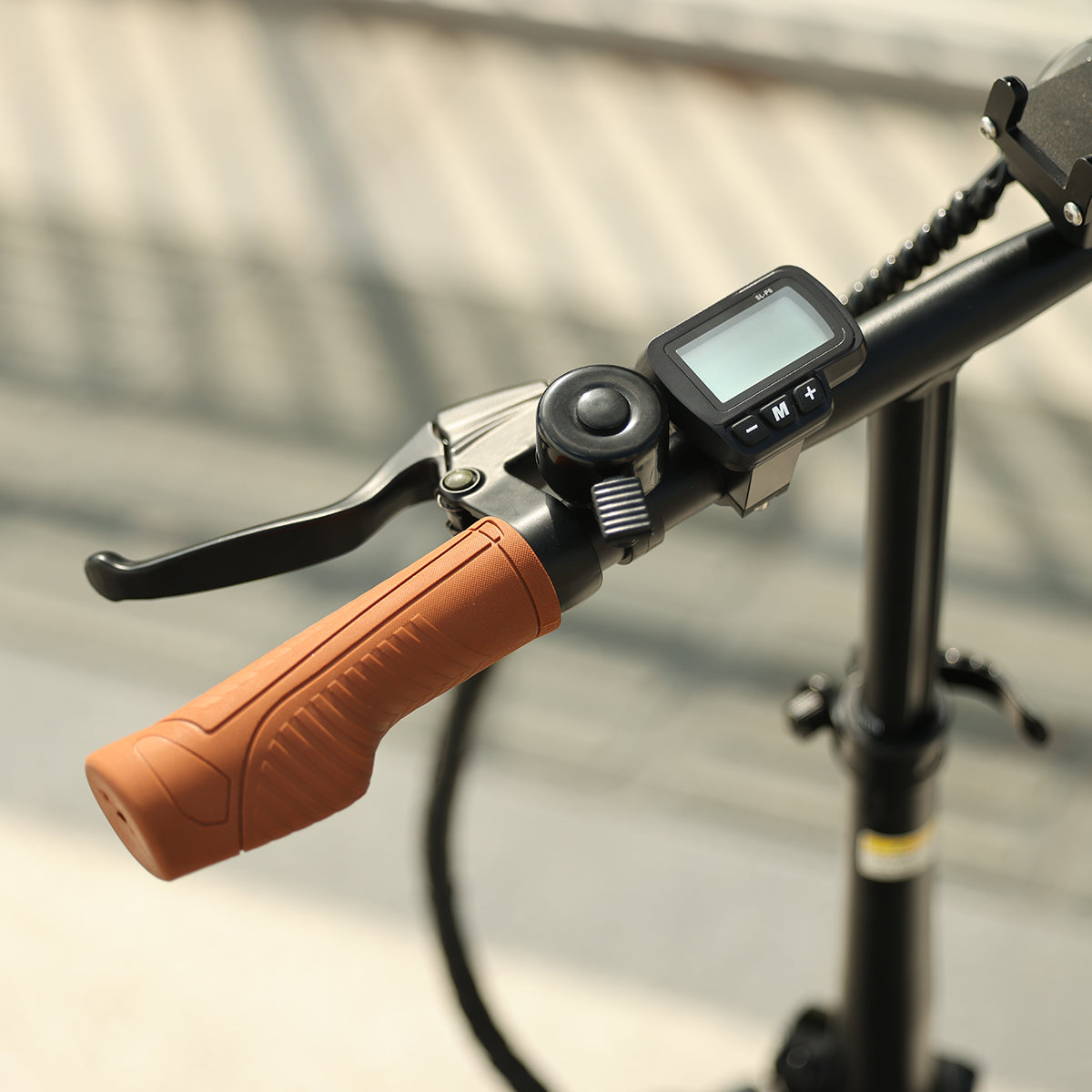

Display | Smart LCD Display |
Lights | Standard Eskute LED headlight |
Frame | Carbon Steel |
Handlebar | Iron T-handlebar Ø22.2*W500mm; intermediate handlebar 25.4mm; cross tube 22.2 |

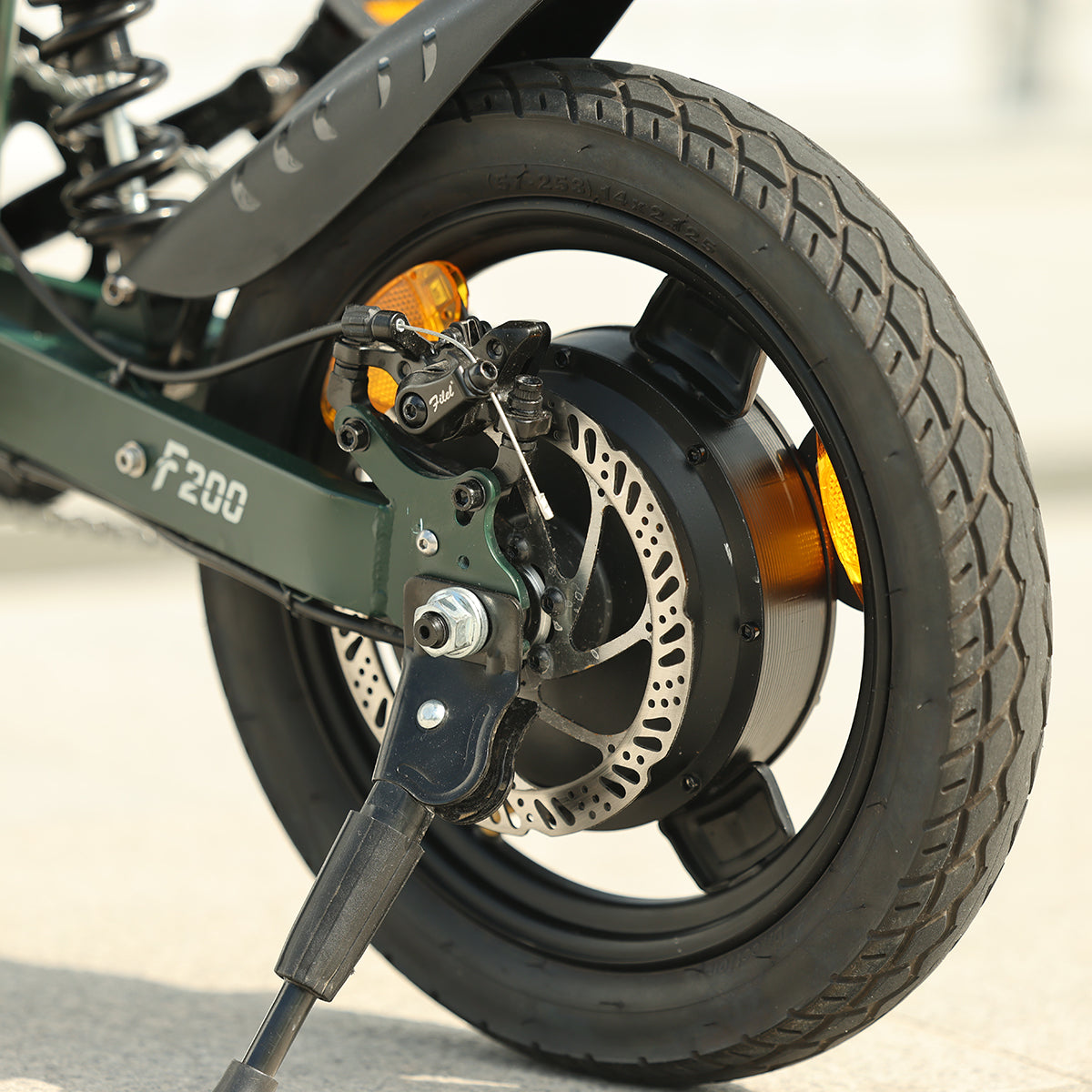

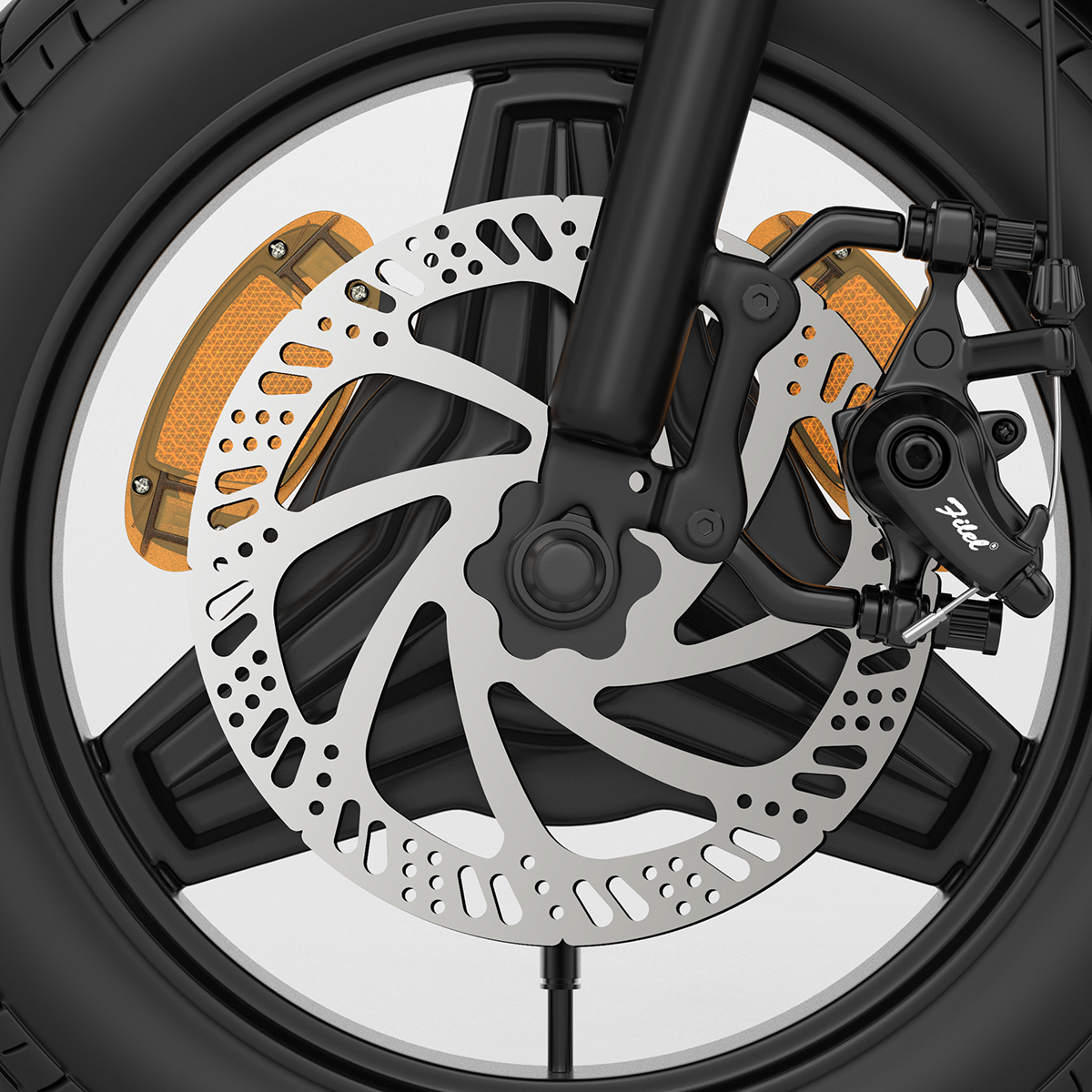

Brake | Mechanical Disc Brakes, 160mm Rotors |
Tires | 14" x 2.125" |
Seatpost
|

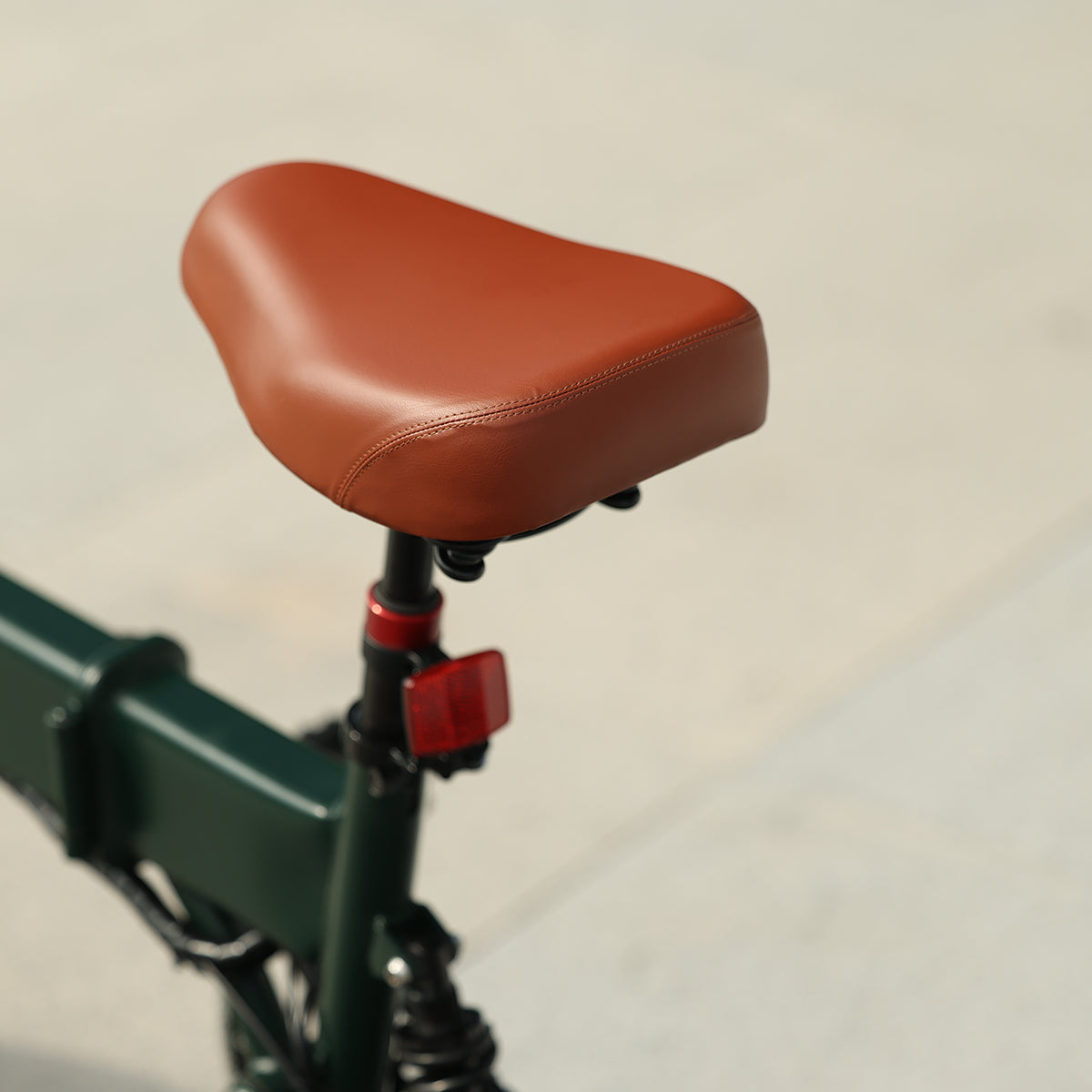

Shock-absorbing seatpost, 31.8*370
|
Crankset | 152mm w / 46 T |
Shift lever | SHIMANO 1 Speed |
Pedals | 9/16' folding Pedals |
Chain | 1 Speed |
Total Bike Weight | 47 lbs |
Battery Weight | 3 lb 5 oz |
Package Weight | 57 lb 5 oz |

F200 is not recommended for frequent riding in the rain, especially during heavy rainfall.

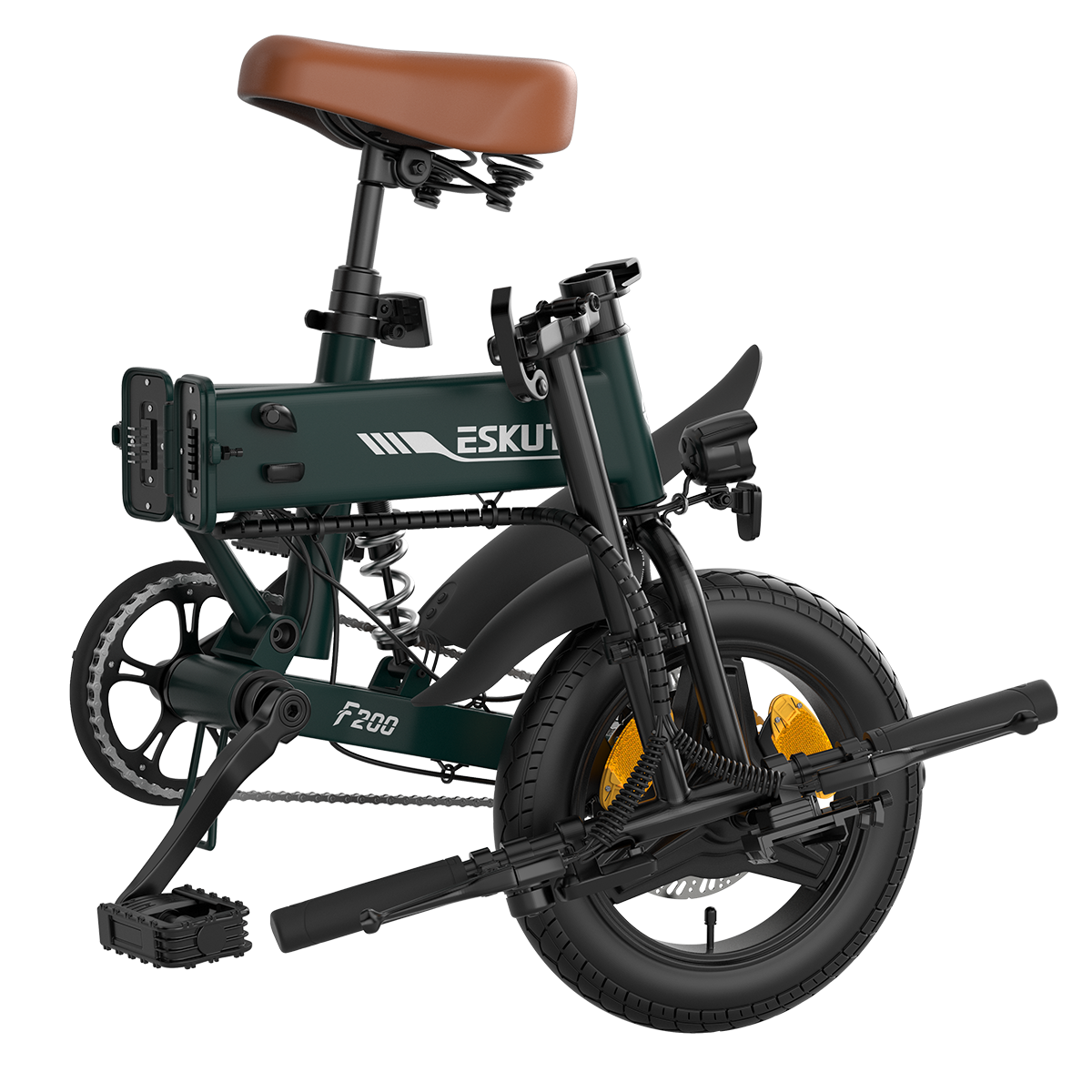

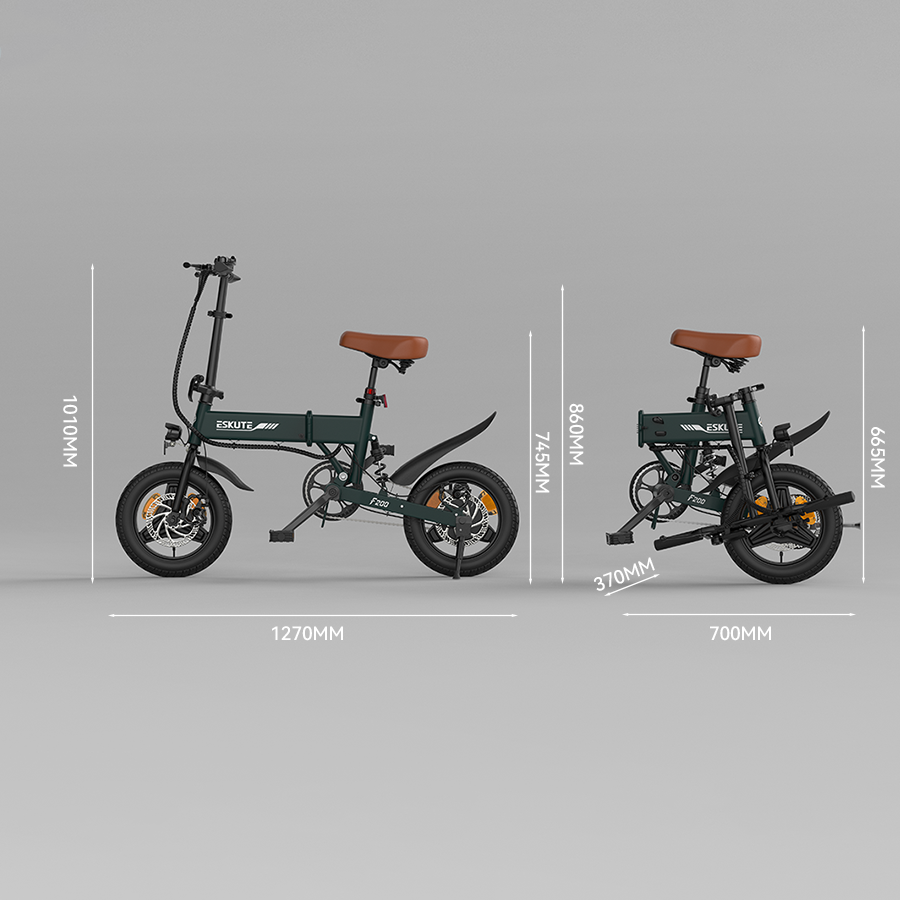

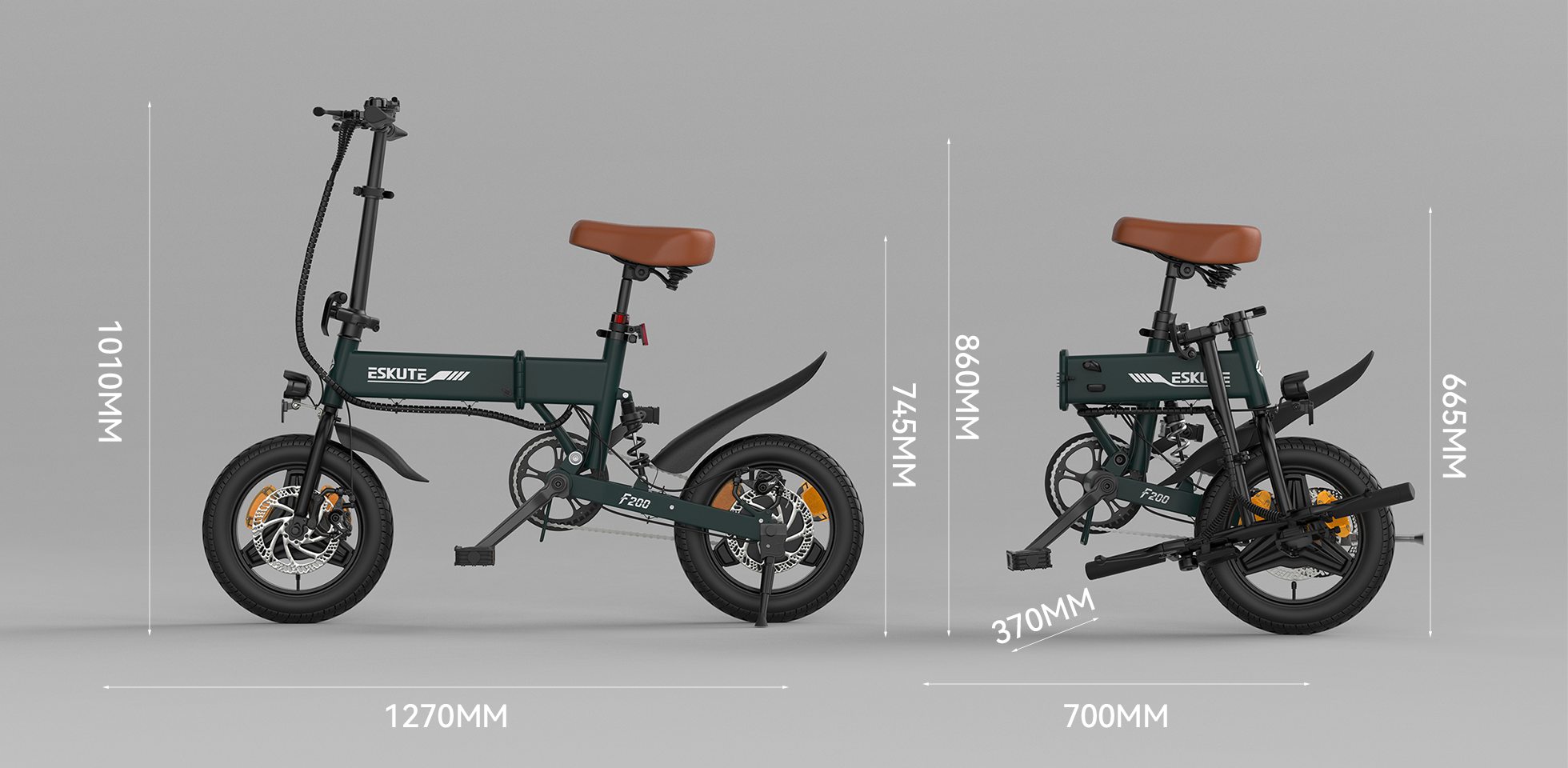

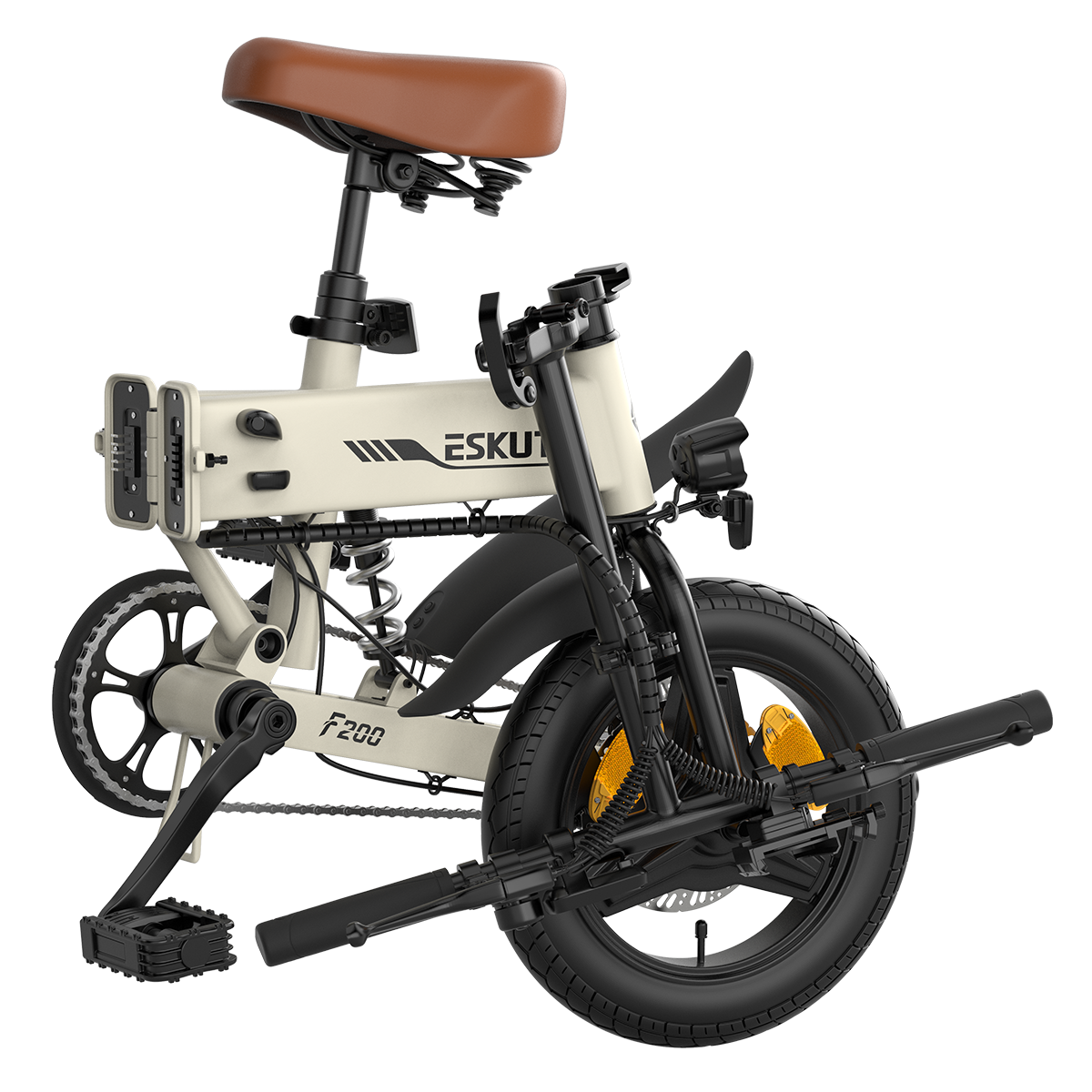

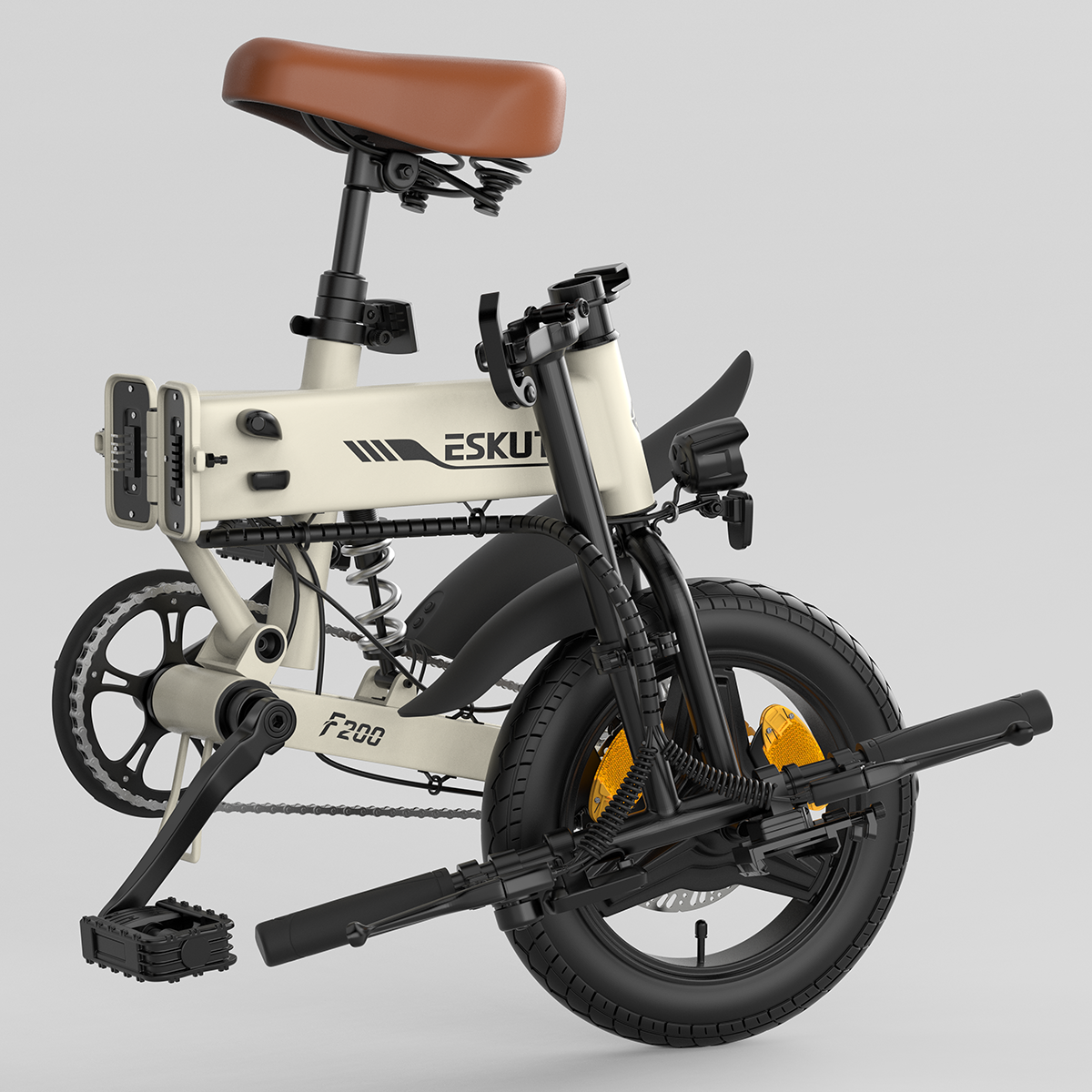

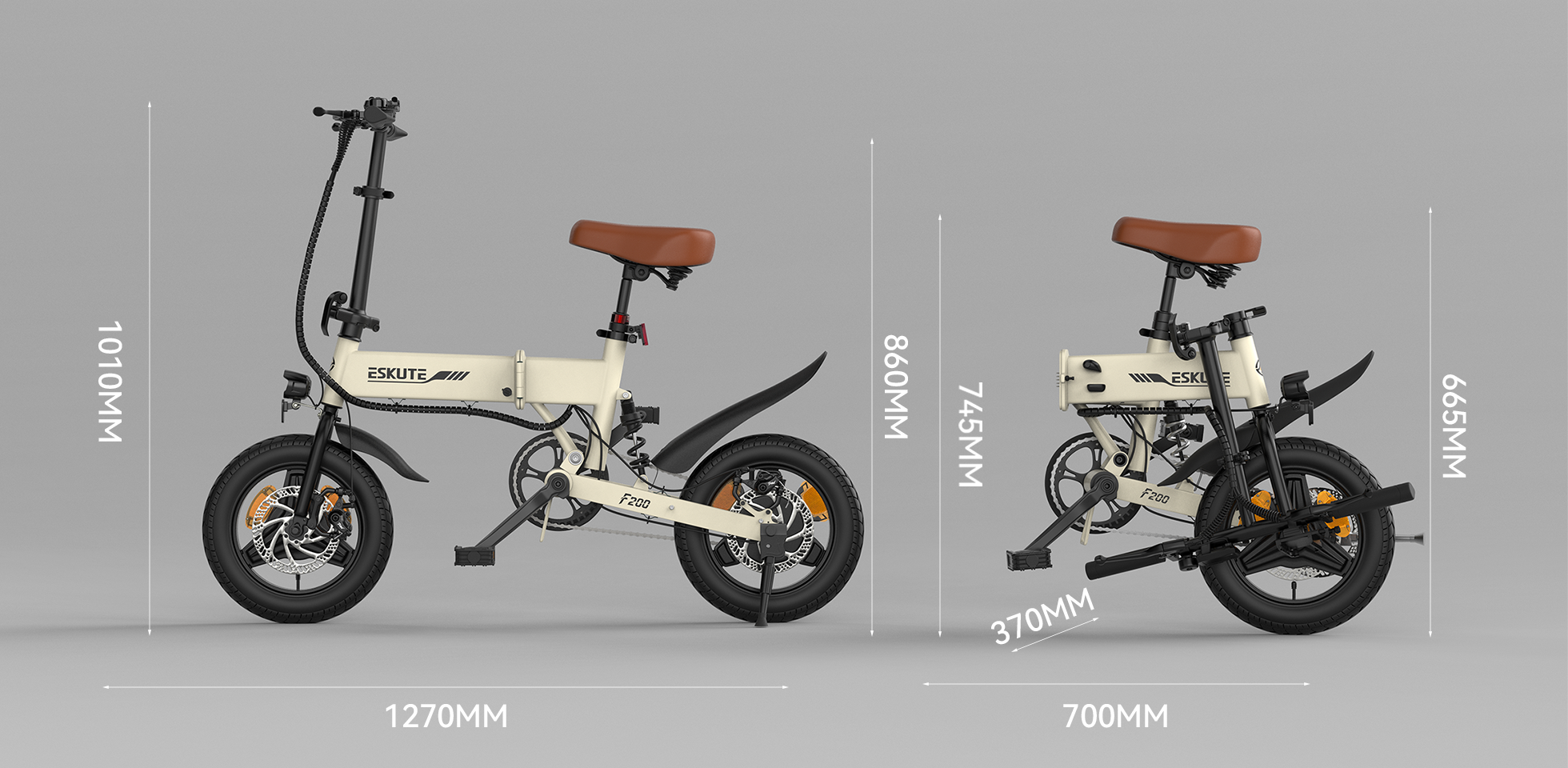

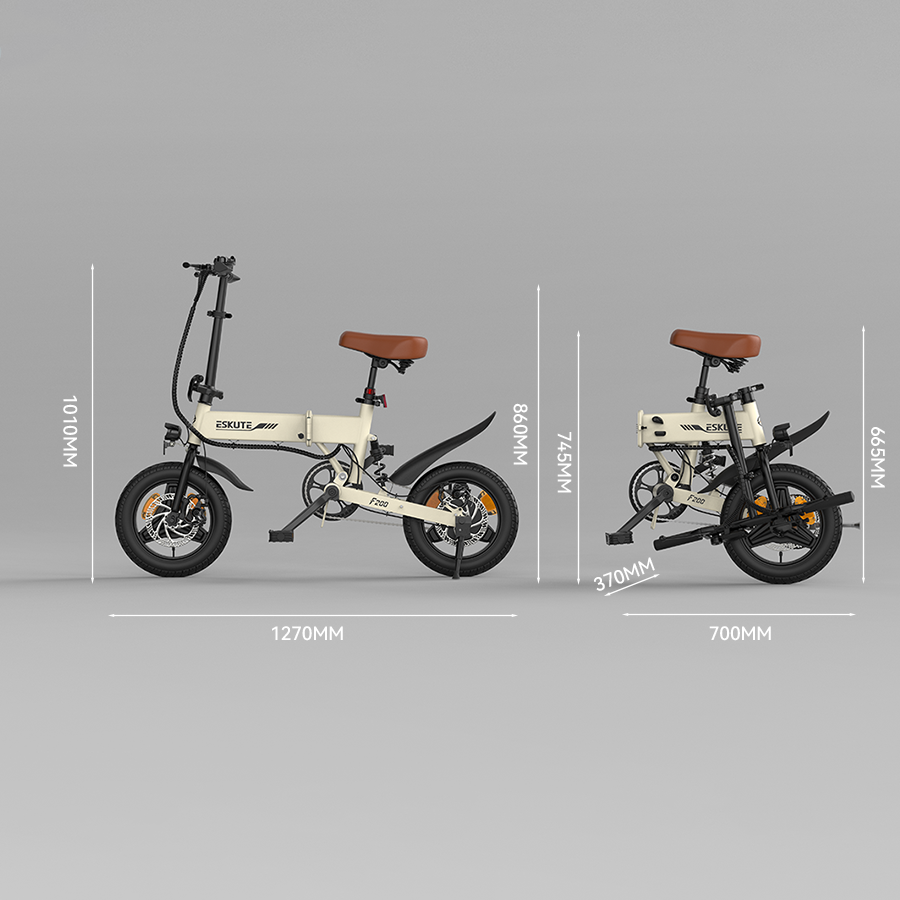

Yes, the F200 can be folded to a compact size of 74.5 × 66.5 × 37 cm and therefore fits comfortably in the boot of a car.
- The total weight of the package for the F200 is 26kg.
- The weight of the bike (including the battery) is 21kg.
- The battery weight is 1.5kg.
- The maximum weight capacity of F200 is 120kg.
Turn on the display screen, then long-press the "+" button to turn on the lights.
Not charging for 3 months will lead to battery damage, and the customer will be responsible for any damage to the battery caused by not charging for a long time. In order to keep the battery longer life, please keep charging at least once a half month.
It can run around up to 60 KM on Pedal Assist ,Of course, the range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and ebike, wind resistance, tyre pressure and tread profile, terrain and elevation changes, road or trail surface, outdoor temperature, maintenance of the E-Bike and the condition of the battery.
