Star Fat Tires EBike(Foldable)
Star Fat Tires EBike(Foldable)
With its powerful electric motor and sturdy fat tires, this bike can conquer any terrain with ease, from rugged mountains to city streets. And when you're ready to pack up and go, its foldable frame makes it easy to take with you on your next adventure. With the convenience and power of the foldable fat-tire e-bike, you'll never have to worry about getting lost or stuck again.
Read moreUnfold Freedom on Your Commute, Pack Your Adventure
Powerful 250W Sutto (Sub-brands of Bafang) hub motor boosts bike to a top speed of 15mph(limited). Exactly what you need while cruising comfortably around bustling streets, areas with heavy snow or sand on a daily basis
Unlock limitless power with our 36V, 25Ah (900Wh) battery, featuring Samsung Cells. Expertly hidden in the center frame and lockable with a key, you can keep it safely stored or take it out and recharge with ease. The Star's e-bike battery offers worry-free riding with a range of up to 74 KM on a single charge and a charging time of 7-8 hours.
Easy-to-read display monitors your speed, pedal-assistant level, mileage, battery status, etc. Above that it also allows you to easy charging your smartphone with an integrated USB port.
Fold It, Ride It, Love It

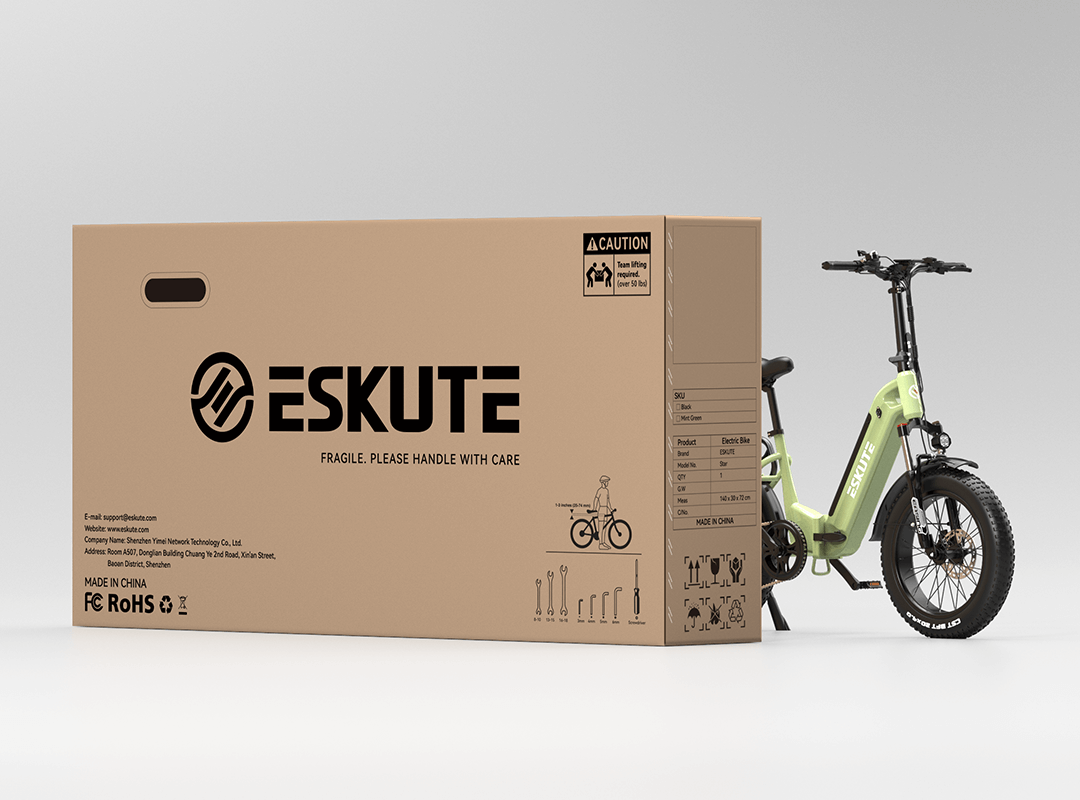

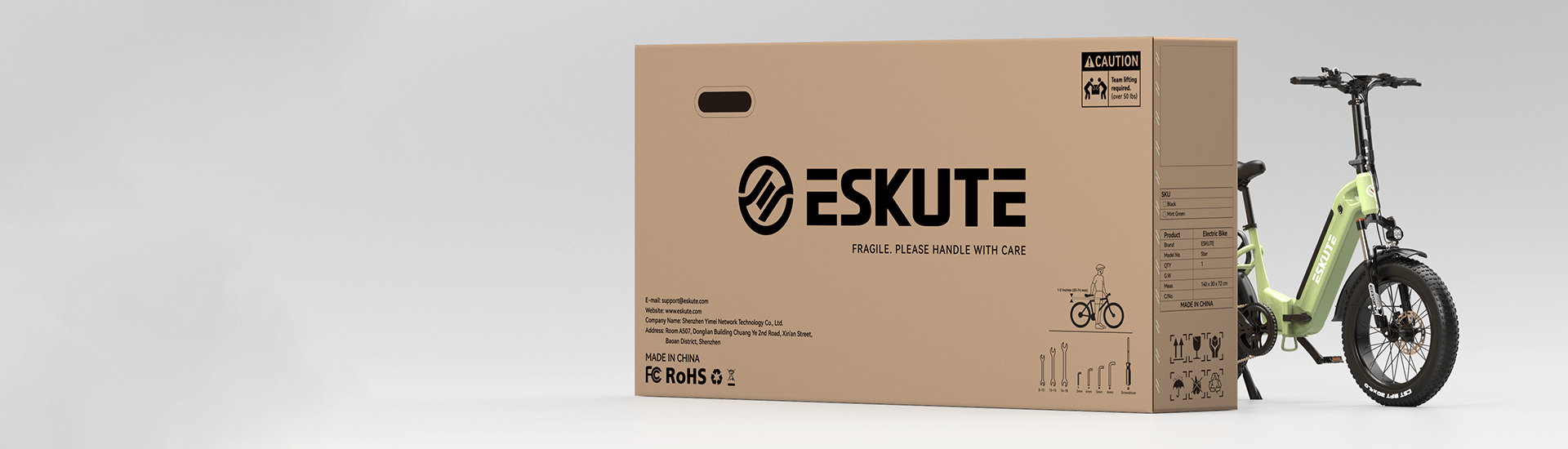

What's in your box?
· ESKUTE Star
· Tool Box
· Charger
· Battery Key
Top Speed | 15mph(Limitied)(*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power.) |
Range | Up to 74 miles on Pedal Assist |
Weight Capacity | 125 KG |
Recommended Rider Heights | 5'2"- 6'2" |
Motor |
SUTTO(BAFANG) 250W , 36V Rear Hub Motor,65Nm |
Battery | Removable Internal Lithium-ion 36V, 25Ah (900Wh) with Samsung/LG Cells |
Charger | 42V 3Amp Fast Charger, 8-9 Hour Charging |
Sensor | Torque Sensor |
Throttle | No throttle included |
Pedal Assist | 5 Levels |
Display | Integrated Smart LCD Display |
Lights | Standard Eskute LED headlight |
Frame | 6061 Aluminum Alloy Frame |
Front Fork | Hydraulic lockout, Coil spring adjust for preload, 100mm travel |
Brake | Hydraulic Disc Brakes, 160mm Rotors |
Tires | CST, 20 x 4.0" |
Rims | Single Wall Aluminum 36h Front & Rear |
Crankset | 170mm w/ 44 T |
Shift lever | SHIMANO 7 Speed |
Pedals | 9/16' Alloy Platform |
Chain | KMC - 7 Speed |
Total Bike Weight | 74lbs |
Frame Size | SYMBOL | SIZE (mm) |
Top tube length | A | 820 |
Head tube length | B | 160 |
Max seat height | C | 950 |
Min seat height | D | 770 |
Wheelbase | E | 1200 |
Handlebar height | F | 1220 |
Total Length | G | 1680 |
How-To-Install
A useful guide to making the most of it all.
During the one-year warranty period, if the battery is found to be defective, it will be replaced at no charge to you. After the warranty period or if you need additional batteries, they can be purchased at Eskute
Not charging for 3 months will lead to battery damage, and the customer will be responsible for any damage to the battery caused by not charging for a long time. In order to keep the battery longer life, please keep charging at least once a half month.
All Eskute e-bikes are IPX4 waterproof, which means, normally, you don't need to worry about damage caused by spray from a wet road, raindrops during riding, or parking your e-bike in light rain. But please note that the e-bike is not intended to be submerged or subjected to a pressurized spray, nor use a pressure washer or sprayer to clean your e-bike.
To protect the bike and ensure your safety, we strongly recommend you not to ride in rainy or overly wet environments, even though the cables and other equipment are waterproof. Even if the battery is removed, there are many electronic devices such as wires, motors, etc., which may be damaged in rainy weather.
Yes, for sure.
It can run around up to 67 KM on Pedal Assist ,Of course, the range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and ebike, wind resistance, tyre pressure and tread profile, terrain and elevation changes, road or trail surface, outdoor temperature, maintenance of the E-Bike and the condition of the battery.
